De-Sta-Co

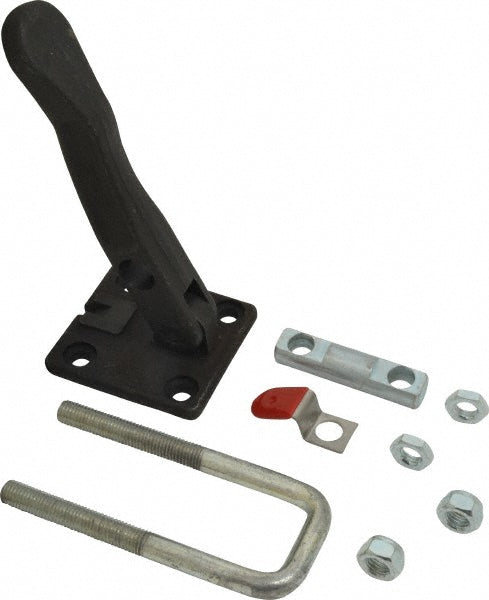

Toggle Clamp - De-Sta-Co 385-L
MFR# 385-L
$113.86List $142.92
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The De-Sta-Co 385-L is a carbon steel toggle clamp.
Specifications
Bar styleU-Hook
Bar thickness0.4700
Bar width2.1200
Base length3.44
Base length (mm)87.38
Base styleFlanged
Base to center of bar1.1300
Base width in3.1300
Body materialCarbon Steel
Clamping orientationHorizontal
Drawing movement2.1900
Handle colorBlack
Handle styleStraight
Hook adjustment1.07
IncludesPatented Thumb Control Lever; Threaded U-Hook
Industry number385-L
Length distance between mount holes in2-1/4
Load capacity33300N; 7500lb
Load capacity n33300.00
MaterialCarbon Steel
Mounting hole diameter0.4100
Mounting hole diameter (mm)10.41
Overall height1.8400
Overall length10.1200
Width distance between mounting holes2.2500
Width distance between mount holes in2-1/4
