De-Sta-Co

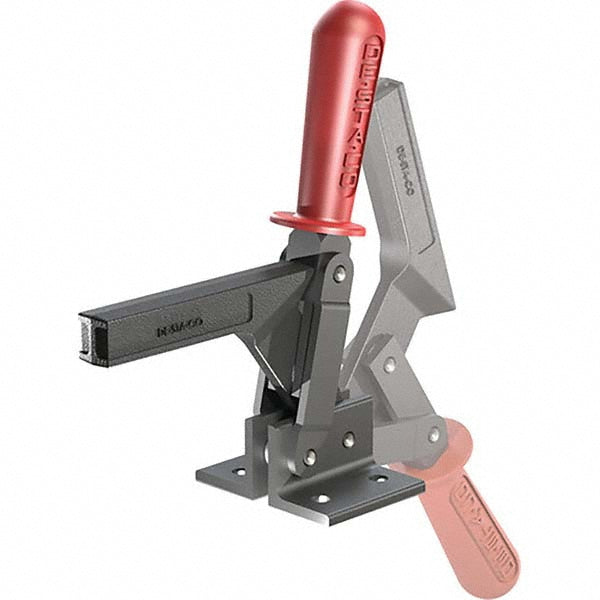

Toggle Clamp - De-Sta-Co 5105
MFR# 5105
$53.10
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The De-Sta-Co 5105 is a forged alloy steel toggle clamp.
Specifications
Bar end typeClosed
Bar opening degrees89
Bar styleSolid
Bar thickness0.5600
Bar width0.5100
Base length (mm)41.15
Base styleFlanged
Finish coatingOxide
Front of base to tip of toggle bar2.5100
Front of base to toggle tip2.51in
Handle colorRed
Handle materialForged Alloy Steel
Handle movement degrees159
Handle orientationVertical
Handle styleStraight
Height under bar2.5400
Holding capacity lb696.91
Holding capacity n3100.00
Length distance between mount holes in1.0
MaterialForged Alloy Steel
Mounting hole diameter0.2600
Number of mounting holes4
Overall height6.5400
Overall length4.1300
Width distance between mount holes1.4600
