De-Sta-Co

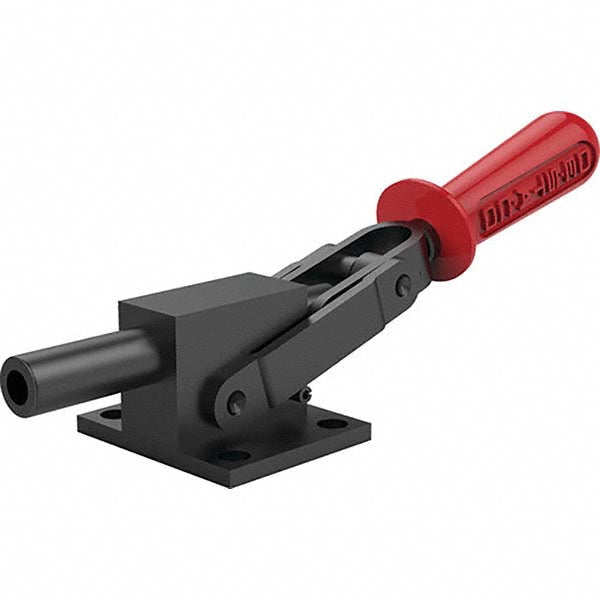

Toggle Clamp - De-Sta-Co 5130-M
MFR# 5130-M
$88.95List $92.74
Save 4%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The De-Sta-Co 5130-M is a carbon steel toggle clamp.
Specifications
Base length in1-3/4
Base styleFlanged
Base width in2.9900
Clamp materialCarbon Steel
Handle colorRed
Handle styleStraight
Length distance between mount holes in1.7500
Load capacity25800N; 5800.07lb
Load capacity n25800.00
MaterialCarbon Steel
Mounting hole diameter (mm)10.41
Number of mounting holes4
Overall height3.6300
Overall length11.1100
Plunger centerline height0.8700
Plunger diameter1.3800
Plunger shapeRound
Plunger thread sizeM12
Plunger thread styleInternal
Plunger travel1.7500
Width distance between mount holes2.3100
