De-Sta-Co

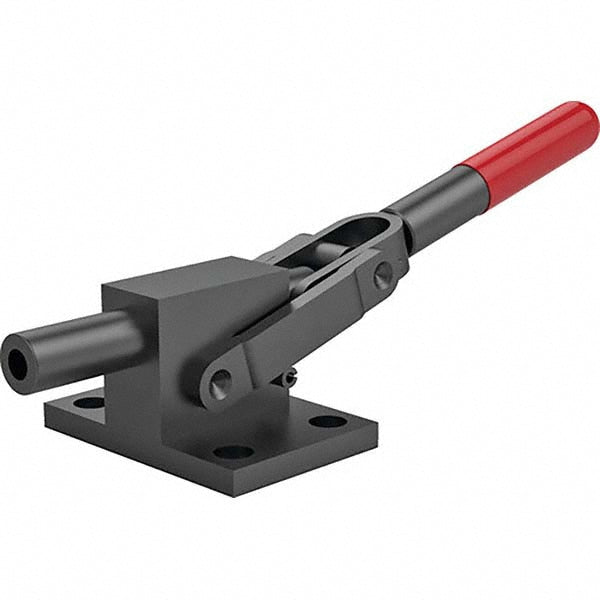

Toggle Clamp - De-Sta-Co 5131-M
MFR# 5131-M
$66.49List $70.55
Save 5%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The De-Sta-Co 5131-M is a carbon steel toggle clamp.
Specifications
Base length1.7300
Base styleFlanged
Base width in2.5200
Clamp materialCarbon Steel
Handle colorRed
Handle styleStraight
Length distance between mount holes in1.1300
Load capacity11120N; 2499.88lb
Load capacity n11120.00
MaterialCarbon Steel
Mounting hole diameter (mm)8.64
Number of mounting holes4
Overall height3.1500
Overall length7.3700
Plunger centerline height1.1000
Plunger diameter0.5100
Plunger shapeRound
Plunger thread sizeM8
Plunger thread styleInternal
Plunger travel1.0000
Width distance between mount holes1.8700
