De-Sta-Co

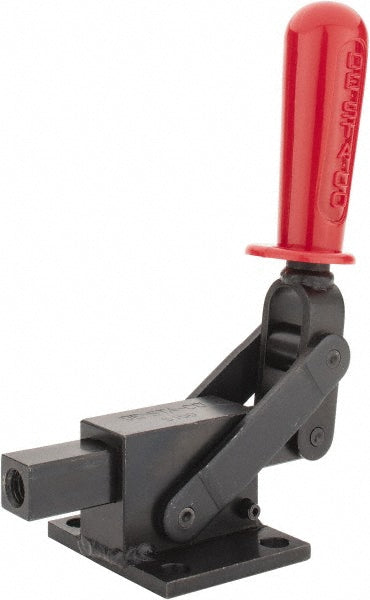

Toggle Clamp - De-Sta-Co 5150
MFR# 5150
$98.98List $103.32
Save 4%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The De-Sta-Co 5150 is a carbon steel toggle clamp.
Specifications
Base length2.5200
Base styleFlanged
Base width in2.9900
Clamp materialCarbon Steel
Handle colorRed
Handle styleStraight
Length distance between mount holes in1.7500
Load capacity25800N; 5800.07lb
Load capacity n25800.00
MaterialCarbon Steel
Mounting hole diameter (mm)10.41
Number of mounting holes4
Overall height3.6300
Overall length5.2400
Plunger centerline height1.3700
Plunger diameter0.4100
Plunger shapeSquare
Plunger thread size1/2-13
Plunger thread styleInternal
Plunger travel1.9100
Width distance between mount holes2.1300
