De-Sta-Co
Toggle Clamp - De-Sta-Co 527
MFR# 527
$142.34
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description

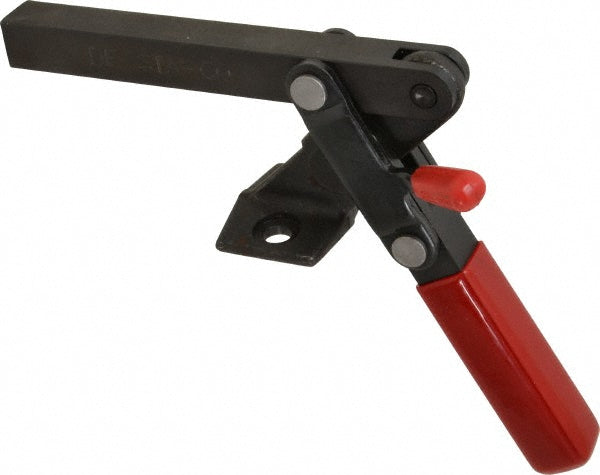

The De-Sta-Co 527 is a carbon steel toggle clamp.
Specifications
Bar end typeClosed
Bar opening degrees195
Bar styleSolid
Bar thickness0.7480
Bar width in3/4
Base length (mm)46.48
Base styleFlanged
Base width in2.2200
Finish coatingZinc
Front of base to tip of toggle bar3.2500
Front of base to toggle tip3.25in
F 3 201
Handle colorRed
Handle materialCarbon Steel
Handle movement degrees65
Handle orientationVertical
Handle styleStraight
Height under bar2.2100
Holding capacity lb1000.00
Holding capacity n4450.00
MaterialCarbon Steel
Maximum mechanical advantage12:01
Mounting hole diameter0.4100
Number of mounting holes2
Overall height6.7800
Overall length8.1400
Width distance between mount holes1.2500
