De-Sta-Co

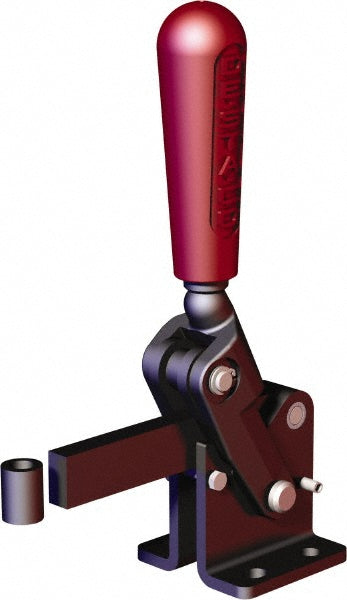

Toggle Clamp - De-Sta-Co 533-L
MFR# 533-L
$188.63
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The De-Sta-Co 533-L is a forged alloy steel toggle clamp.
Specifications
Bar end typeClosed
Bar opening degrees120
Bar styleSolid
Bar width0.7900
Base length (mm)59.94
Base styleFlanged
Base width in1.7500
Finish coatingOxide
Front of base to tip of toggle bar2.5600
Front of base to toggle tip2.56in
Handle colorRed
Handle materialForged Alloy Steel
Handle movement degrees90
Handle orientationVertical
Handle styleStraight
Height under bar1.8600
Holding capacity lb1573.66
Holding capacity n7000.00
IncludesBolt Retainer
Length distance between mount holes in1.18
MaterialForged Alloy Steel
Mounting hole diameter0.3300
Number of mounting holes4
Overall height8.6000
Overall length125.0000
Width distance between mount holes1.7700
