De-Sta-Co

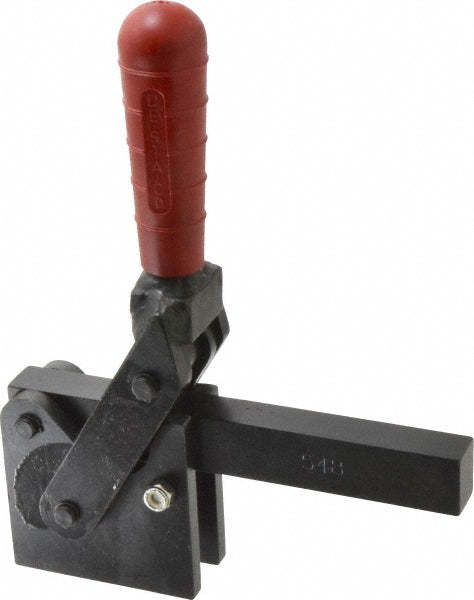

Toggle Clamp - De-Sta-Co 548
MFR# 548
$179.47
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The De-Sta-Co 548 is a carbon steel toggle clamp.
Specifications
Bar end typeClosed
Bar opening degrees199
Bar styleSolid
Bar thickness0.7520
Bar width in1
Base length in3-1/4
Base styleStraight
Base width in2.0000
Finish coatingZinc
Front of base to tip of toggle bar4.2500
Front of base to toggle tip4.25in
F 5 41
Handle colorRed
Handle materialCarbon Steel
Handle movement degrees129
Handle orientationVertical
Handle styleStraight
Height under bar2.2400
Holding capacity lb2500.00
Holding capacity n11100.00
MaterialCarbon Steel
Maximum mechanical advantage3.4:1
Overall height9.4500
Overall length7.5000
