De-Sta-Co

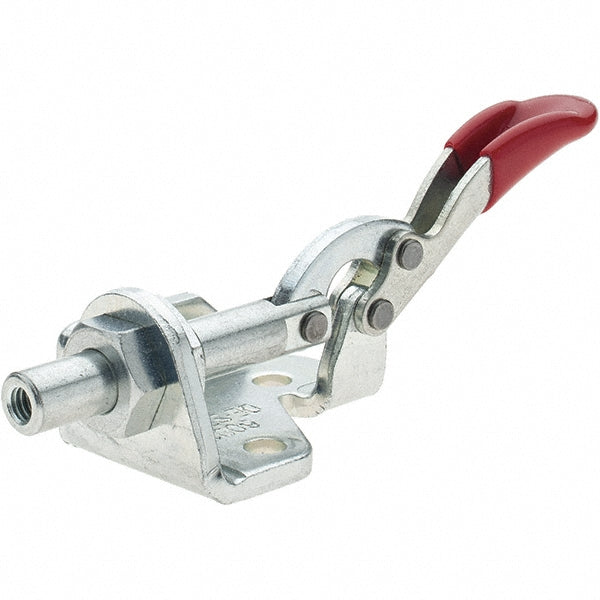

Toggle Clamp - De-Sta-Co 6001
MFR# 6001
$28.27List $34.86
Save 18%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The De-Sta-Co 6001 is a carbon steel toggle clamp.
Specifications
Base length1.5400
Base styleFlanged
Base width in1.2300
Clamp materialCarbon Steel
F 5 21 (Pulling)
Handle colorRed
Handle styleThumb
IncludesJam Nut
Jam nut height0.1600
Length distance between mount holes in0.6300
Load capacity670N; 150.62lb
Load capacity n670.00
MaterialCarbon Steel
Maximum mechanical advantage14:1 (Pushing)
Mounting hole diameter (mm)4.83
Number of mounting holes5
Overall height1.2700
Overall length2.6300
Plunger centerline height0.5000
Plunger diameter0.2800
Plunger shapeRound
Plunger thread size8-32
Plunger thread styleInternal
Plunger travel0.6300
Width distance between mount holes0.6300
