De-Sta-Co

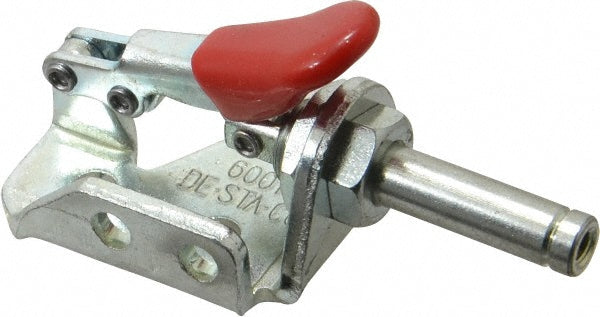

Toggle Clamp - De-Sta-Co 6001-M
MFR# 6001-M
$24.50List $30.75
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The De-Sta-Co 6001-M is a carbon steel toggle clamp.
Specifications
Base length1.5400
Base styleFlanged
Base width in1.2300
Clamp materialCarbon Steel
Front of base to tip of toggle bar1.1000
F 5 21 (Pulling)
Handle colorRed
Handle styleThumb
Industry number6001-M
Length distance between mount holes in0.6300
Load capacity667.23N; 150lb
Load capacity n667.23
MaterialCarbon Steel
Maximum mechanical advantage14:1 (Pushing)
Mounting hole diameter (mm)4.83
Number of mounting holes3
Overall height1.2700
Overall length2.6300
Plunger centerline height0.5000
Plunger diameter0.2800
Plunger shapeRound
Plunger thread sizeM4x0.7
Plunger thread styleInternal
Plunger travel0.6300
Width distance between mount holes0.6300
