De-Sta-Co

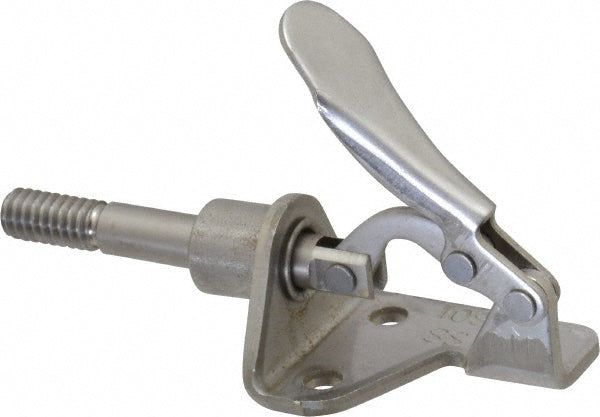

Toggle Clamp - De-Sta-Co 601-OSS
MFR# 601-OSS
$37.81List $37.89
Save 0%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The De-Sta-Co 601-OSS is a stainless steel toggle clamp.
Specifications
Base length1.3300
Base styleFlanged
Base width in1.0500
Clamp materialStainless Steel
Front of base to tip of toggle bar1.5300
F 5 21 (Pulling)
Handle styleThumb
Industry number601-OSS
Length distance between mount holes in0.6300
Load capacity444.82N; 100lb
Load capacity n444.82
MaterialStainless Steel
Maximum mechanical advantage14:1 (Pushing)
Mounting hole diameter (mm)4.32
Number of mounting holes3
Overall height1.2700
Overall length2.6100
Plunger centerline height0.5000
Plunger diameter in1/4
Plunger shapeRound
Plunger thread size1/4-20
Plunger thread styleExternal
Plunger travel0.6300
Width distance between mount holes0.6300
