De-Sta-Co

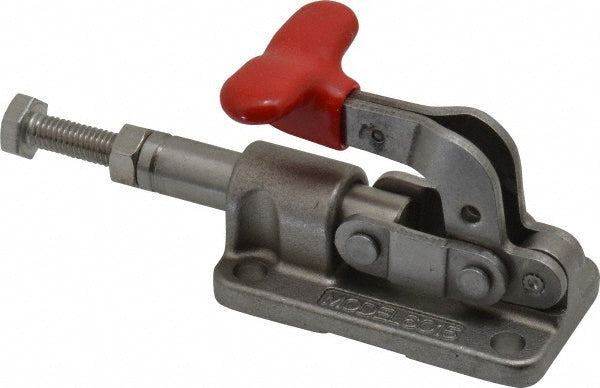

Toggle Clamp - De-Sta-Co 6015-MSS
MFR# 6015-MSS
$73.36List $77.84
Save 5%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The De-Sta-Co 6015-MSS is a stainless steel toggle clamp.
Specifications
Base length in2-1/4
Base styleFlanged
Base width in1.2600
Clamp materialStainless Steel
Front of base to tip of toggle bar0.7100
Handle colorRed
Handle styleT-Handle
Industry number6015-MSS
Length distance between mount holes in1.7500
Load capacity2802.38N; 630lb
Load capacity n2802.38
MaterialStainless Steel
Mounting hole diameter (mm)5.59
Number of mounting holes4
Overall height1.5900
Overall length2.9600
Plunger centerline height0.5000
Plunger diameter0.3900
Plunger shapeRound
Plunger thread sizeM6x1.00
Plunger thread styleInternal
Plunger travel0.7000
Width distance between mount holes0.8700
