De-Sta-Co

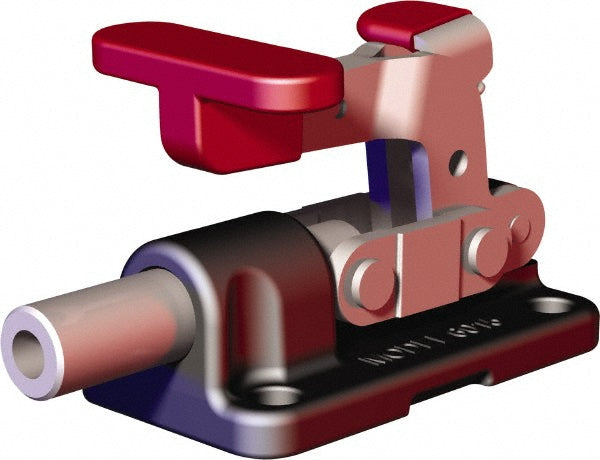

Toggle Clamp - De-Sta-Co 6015-R
MFR# 6015-R
$58.12List $64.45
Save 9%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The De-Sta-Co 6015-R is a carbon steel toggle clamp.
Specifications
Base length in2-1/4
Base styleFlanged
Base width in1.2600
Clamp materialCarbon Steel
F 5 31 (Pushing)
Handle colorRed
Handle styleT-Handle
Length distance between mount holes in1.7500
Load capacity2500N; 562.02lb
Load capacity n2500.00
MaterialCarbon Steel
Maximum mechanical advantage35:1 (Pulling)
Mounting hole diameter (mm)5.59
Number of mounting holes4
Overall height1.5900
Overall length2.9600
Plunger centerline height0.5000
Plunger diameter0.3900
Plunger shapeRound
Plunger thread size1/4-20
Plunger thread styleInternal
Plunger travel0.7000
Width distance between mount holes0.8700
