De-Sta-Co

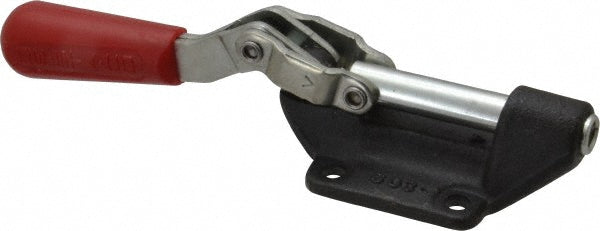

Toggle Clamp - De-Sta-Co 603-M
MFR# 603-M
$34.61List $38.38
Save 9%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The De-Sta-Co 603-M is a carbon steel toggle clamp.
Specifications
Base length2.0000
Base styleFlanged
Base width in1.8800
Clamp materialCarbon Steel
Front of base to tip of toggle bar2.1800
F 4 31 (Pulling)
Handle colorRed
Handle styleStraight
Industry number603-M
Length distance between mount holes in1.4400
Load capacity2668.93N; 600lb
Load capacity n2668.93
MaterialCarbon Steel
Maximum mechanical advantage23:1 (Pushing)
Mounting hole diameter (mm)6.86
Number of mounting holes4
Overall height3.4300
Overall length4.8000
Plunger centerline height0.9700
Plunger diameter0.4700
Plunger shapeRound
Plunger thread sizeM8x1.25
Plunger thread styleInternal
Plunger travel1.2500
Width distance between mount holes1.3100
