De-Sta-Co

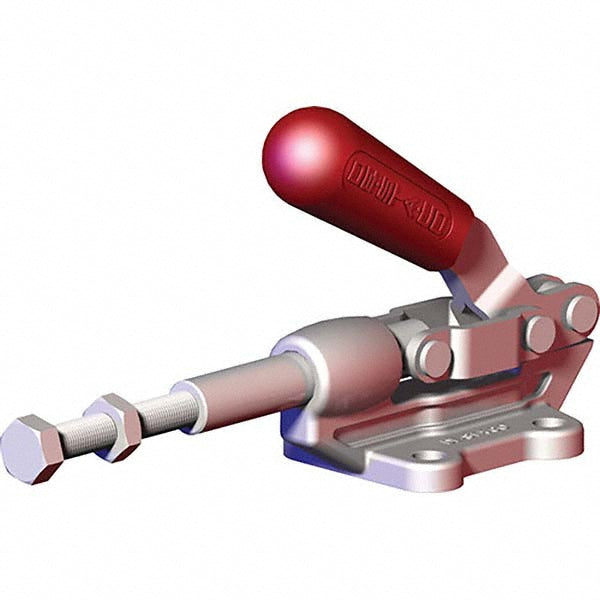

Toggle Clamp - De-Sta-Co 603-MSS
MFR# 603-MSS
$95.51
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The De-Sta-Co 603-MSS is a stainless steel toggle clamp.
Specifications
Base length2.0000
Base styleFlanged
Base width in1.8800
Clamp materialStainless Steel
F 4 31 (Pulling)
Handle colorRed
Handle styleStraight
Length distance between mount holes in1.4400
Load capacity2670N; 600.24lb
Load capacity n2670.00
MaterialStainless Steel
Maximum mechanical advantage23:1 (Pushing)
Mounting hole diameter (mm)6.86
Number of mounting holes4
Overall height3.4700
Overall length4.8000
Plunger centerline height0.9700
Plunger diameter0.4400
Plunger shapeRound
Plunger thread sizeM8
Plunger thread styleInternal
Plunger travel1.2500
Width distance between mount holes1.3100
