De-Sta-Co

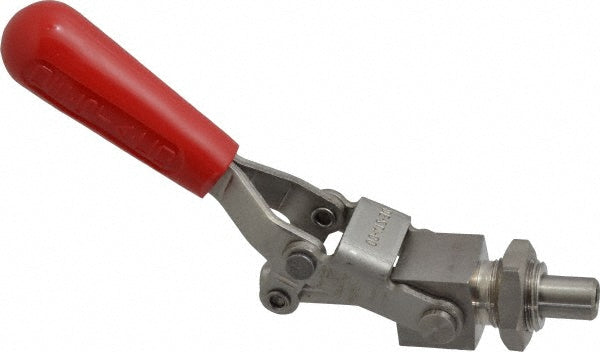

Toggle Clamp - De-Sta-Co 604-SS
MFR# 604-SS
$71.99
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The De-Sta-Co 604-SS is a stainless steel toggle clamp.
Specifications
Base length2.8000
Base styleMounting Plate
Base width in1.6000
Clamp materialStainless Steel
Front of base to tip of toggle bar1.5600
F 5 41 (Pushing)
Handle styleStraight
IncludesJam Nut
Industry number604-SS
Jam nut height0.2500
Jam nut hex size1.0000
Jam nut thread size3/4-16
Load capacity1779.29N; 400lb
Load capacity n1779.29
MaterialStainless Steel
Maximum mechanical advantage26:1 (Pulling)
Overall height4.1600
Overall length4.9500
Plunger diameter0.4400
Plunger shapeRound
Plunger thread size5/16-18
Plunger thread styleInternal
Plunger travel1.5000
