De-Sta-Co

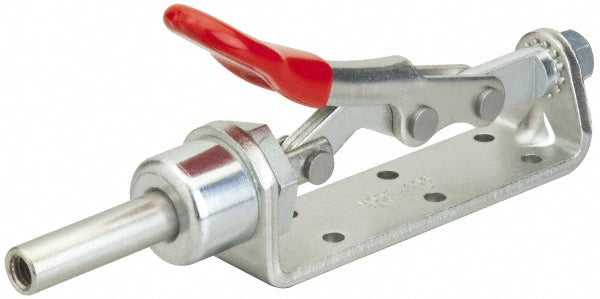

Toggle Clamp - De-Sta-Co 606
MFR# 606
$54.33List $60.25
Save 9%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The De-Sta-Co 606 is a carbon steel toggle clamp.
Specifications
Base length in1-3/4
Base styleFlanged
Base width in1.1300
Clamp materialCarbon Steel
Front of base to tip of toggle bar2.2600
Handle colorRed
Handle styleThumb
Industry number606
Length distance between mount holes in1.2500
Load capacity2001.7N; 450lb
Load capacity n2001.70
MaterialCarbon Steel
Mounting hole diameter (mm)5.08
Number of mounting holes6
Overall height2.4200
Overall length6.7200
Plunger centerline height0.8800
Plunger diameter0.4400
Plunger shapeRound
Plunger thread size5/16-18
Plunger thread styleInternal
Plunger travel1.5700
Width distance between mount holes0.6300
