De-Sta-Co

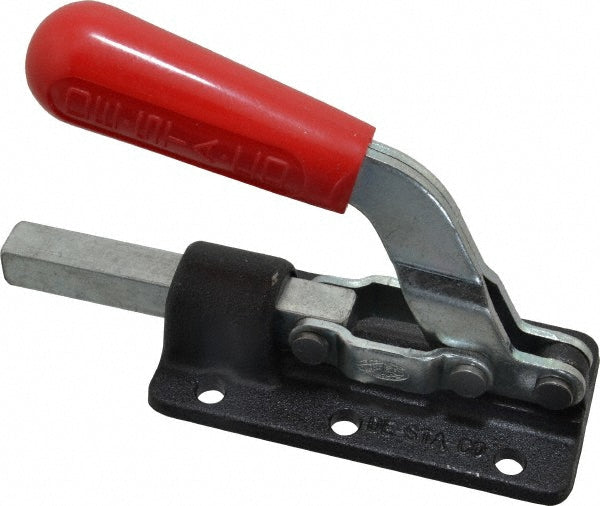

Toggle Clamp - De-Sta-Co 607-SQ
MFR# 607-SQ
$75.45List $83.67
Save 9%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The De-Sta-Co 607-SQ is a carbon steel toggle clamp.
Specifications
Base length in4-1/4
Base styleFlanged
Base width in2.2000
Clamp materialCarbon Steel
Front of base to tip of toggle bar1.7600
Handle colorRed
Handle styleStraight
Industry number607-SQ
Length distance between mount holes in1.3800
Load capacity3558.58N; 800lb
Load capacity n3558.58
MaterialCarbon Steel
Mounting hole diameter (mm)7.11
Number of mounting holes6
Overall height3.5200
Overall length6.0200
Plunger centerline height0.6900
Plunger diameter in1/2
Plunger shapeSquare
Plunger thread size5/16-18
Plunger thread styleInternal
Plunger travel1.6300
Width distance between mount holes1.6300
