De-Sta-Co

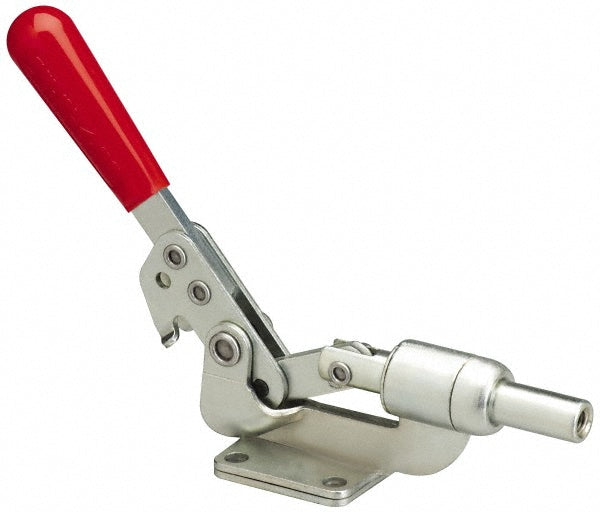

Toggle Clamp - De-Sta-Co 620
MFR# 620
$61.74List $77.51
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The De-Sta-Co 620 is a carbon steel toggle clamp.
Specifications
Base length in2-1/4
Base styleFlanged
Base width in2.2500
Clamp materialCarbon Steel
Front of base to tip of toggle bar3.5700
Handle colorRed
Handle styleStraight
Industry number620
Length distance between mount holes in1.6300
Load capacity2668.93N; 600lb
Load capacity n2668.93
MaterialCarbon Steel
Mounting hole diameter (mm)9.65
Number of mounting holes4
Overall height2.2500
Overall length11.6300
Plunger centerline height1.7000
Plunger diameter0.6200
Plunger shapeRound
Plunger thread size3/8-16
Plunger thread styleInternal
Plunger travel1.1100
Width distance between mount holes1.6300
