De-Sta-Co

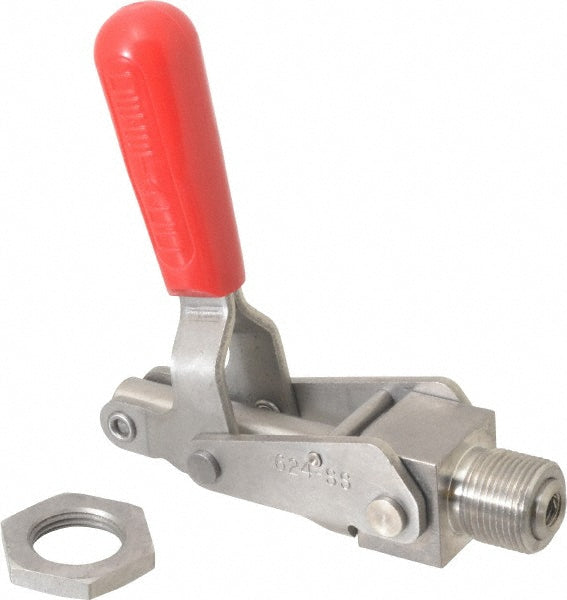

Toggle Clamp - De-Sta-Co 624-SS
MFR# 624-SS
$150.62List $160.01
Save 5%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The De-Sta-Co 624-SS is a stainless steel toggle clamp.
Specifications
Base length3.0000
Base styleMounting Plate
Base width in1.5000
Clamp materialStainless Steel
Front of base to tip of toggle bar3.6300
F 9 41 (Pushing)
Handle styleStraight
IncludesJam Nut
Industry number624-SS
Jam nut height0.2500
Jam nut hex size1.5000
Jam nut thread size1-14
Load capacity3113.76N; 700lb
Load capacity n3113.76
MaterialStainless Steel
Maximum mechanical advantage21:1 (Pulling)
Overall height5.6000
Overall length6.6800
Plunger diameter0.6200
Plunger shapeRound
Plunger thread size3/8-16
Plunger thread styleInternal
Plunger travel2.6300
