De-Sta-Co

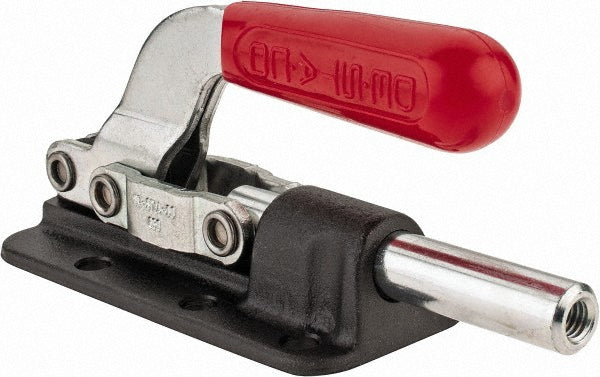

Toggle Clamp - De-Sta-Co 630
MFR# 630
$45.91List $56.62
Save 18%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The De-Sta-Co 630 is a carbon steel toggle clamp.
Specifications
Base length5.0300
Base styleFlanged
Base width in2.2500
Clamp materialCarbon Steel
Front of base to tip of toggle bar2.0300
F 6 31 (Pushing)
Handle colorRed
Handle styleStraight
Industry number630
Length distance between mount holes in1.3800
Load capacity11120.6N; 2500lb
Load capacity n11120.60
MaterialCarbon Steel
Maximum mechanical advantage23:1 (Pulling)
Mounting hole diameter (mm)8.64
Number of mounting holes6
Overall height3.0500
Overall length7.0600
Plunger centerline height0.8100
Plunger diameter0.6200
Plunger shapeRound
Plunger thread size3/8-16
Plunger thread styleInternal
Plunger travel2.0000
Width distance between mount holes1.6300
