De-Sta-Co

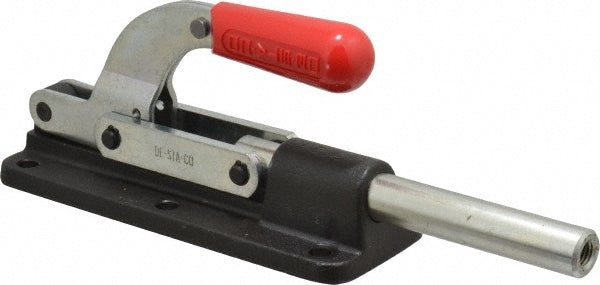

Toggle Clamp - De-Sta-Co 640
MFR# 640
$141.04List $177.04
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The De-Sta-Co 640 is a carbon steel toggle clamp.
Specifications
Base length8.5300
Base styleFlanged
Base width in3.0000
Clamp materialCarbon Steel
Front of base to tip of toggle bar4.1200
Handle colorRed
Handle styleStraight
Industry number640
Length distance between mount holes in3.5600
Load capacity33361.7N; 7500lb
Load capacity n33361.70
MaterialCarbon Steel
Mounting hole diameter (mm)10.41
Number of mounting holes6
Overall height4.2800
Overall length12.6500
Plunger centerline height1.2500
Plunger diameter0.8700
Plunger shapeRound
Plunger thread size1/2-13
Plunger thread styleInternal
Plunger travel4.0000
Width distance between mount holes2.1300
