De-Sta-Co

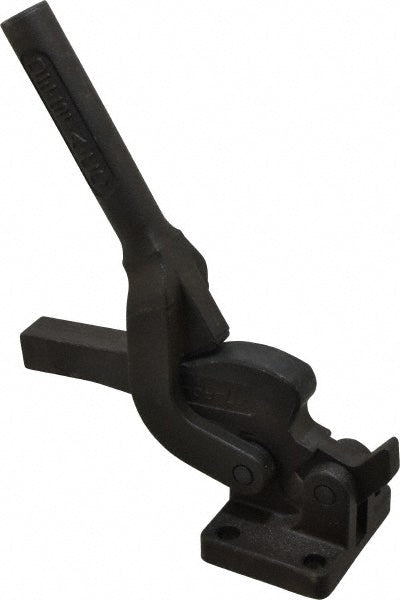

Toggle Clamp - De-Sta-Co 7-59
MFR# 7-59
$295.55
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The De-Sta-Co 7-59 is a carbon steel toggle clamp.
Specifications
Bar end typeClosed
Bar opening degrees95
Bar styleSolid
Bar thickness0.6299
Bar width0.6300
Base length (mm)52.32
Base styleFlanged
Base width in2.5000
Finish coatingZinc
Front of base to tip of toggle bar3.5000
Front of base to toggle tip3.50in
Handle materialCarbon Steel
Handle movement degrees95
Handle orientationVertical
Handle styleStraight
Height under bar2.1900
Holding capacity lb1000.00
Holding capacity n4450.00
Length distance between mount holes in1.38
MaterialCarbon Steel
Mounting hole diameter0.3400
Number of mounting holes4
Overall height8.5000
Overall length6.0000
Width distance between mount holes1.8800
