De-Sta-Co

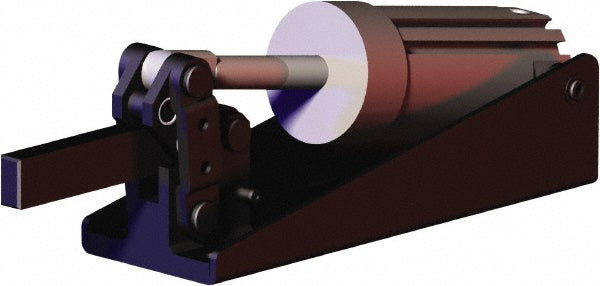

Toggle Clamp - De-Sta-Co 8007-E
MFR# 8007-E
$507.30
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The De-Sta-Co 8007-E is a toggle clamp.
Specifications
Bar end typeClosed
Bar extension2.6800
Bar opening degrees98
Bar styleSolid
Height under bar1.3900
Holding capacity inner lb832.00
Holding capacity inner n3700.00
Length distance between mount holes0.9400
Maximum air pressure bar10.00
Maximum air pressure psig145.00
Maximum operating temperature c90
Maximum operating temperature f194
Minimum operating temperature c-10
Minimum operating temperature f14
Mounting hole size0.2500
Mounting orientationHorizontal
Outer clamping force lb405.00
Outer clamping force n1800.00
Overall closed height3.1500
Overall closed length10.1900
Overall open height5.7200
Overall open length7.5100
Port sizeG1/8
Power typePneumatic
Sensor compatibilityRound; T-Slot
Width distance between mount holes1.8100
