De-Sta-Co

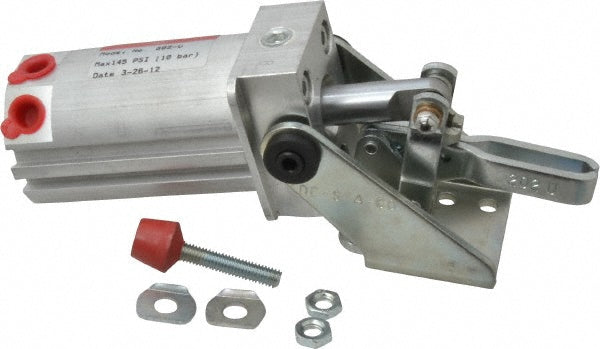

Toggle Clamp - De-Sta-Co 802-U
MFR# 802-U
$164.92List $182.89
Save 9%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The De-Sta-Co 802-U is a toggle clamp.
Specifications
Bar end typeOpen
Bar extension1.7300
Bar opening degrees102
Bar styleSolid
Cylinder bore size1.2600
F 51
Height under bar1.0600
Holding capacity inner lb200.00
Holding capacity inner n890.00
IncludesFlat-Tip Bonded Neoprene Spindle
K in1.0000
Length distance between mount holes0.5000
Maximum air pressure bar10.00
Maximum air pressure psig145.00
Maximum mechanical advantage2.6:1
Maximum operating temperature c90
Maximum operating temperature f194
Minimum operating temperature c-10
Minimum operating temperature f14
Mounting hole size0.2200
Mounting orientationHorizontal
Outer clamping force lb234.00
Outer clamping force n1045.00
Outer load capacity lb110.00
Outer load capacity n490.00
Overall closed height2.5500
Overall closed length7.6900
Overall open height3.7700
Overall open length5.9600
Port size1/8 NPT
Power typePneumatic
Sensor compatibilityRound; T-Slot
Width distance between mount holes1.0600
