De-Sta-Co

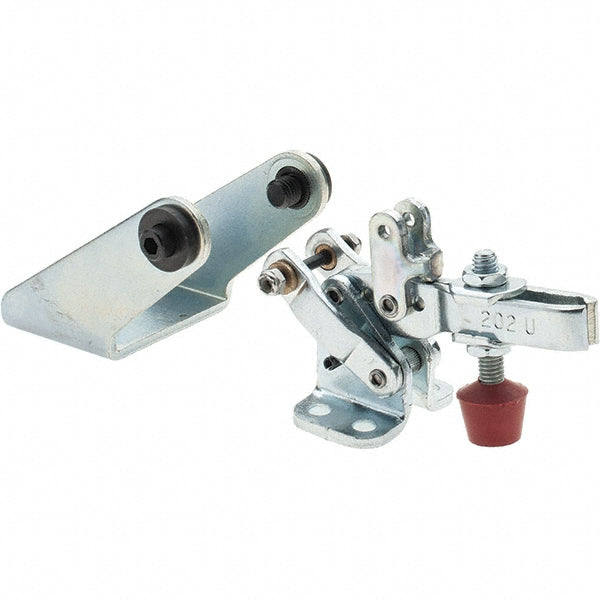

Toggle Clamp - De-Sta-Co 802-U-LC
MFR# 802-U-LC
$71.24
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The De-Sta-Co 802-U-LC is a toggle clamp.
Specifications
Bar end typeClosed
Bar extension1.7300
Bar opening degrees102
Bar styleSolid
Cylinder bore size1.2600
F 6 21
Height under bar1.0600
Holding capacity inner lb200.00
Holding capacity inner n890.00
IncludesSpindle Assembly
Length distance between mount holes in1/2
Maximum air pressure bar2.20
Maximum mechanical advantage05:01
Maximum operating temperature f194
Minimum operating temperature f14
Mounting hole size0.2200
Mounting orientationHorizontal
Outer clamping force n1045.00
Overall closed height2.5500
Overall closed length7.6900
Overall open height3.7700
Port size1/8 NPT
Power typePneumatic
Sensor compatibilityRound; T-Slot
Width distance between mount holes1.0600
