De-Sta-Co

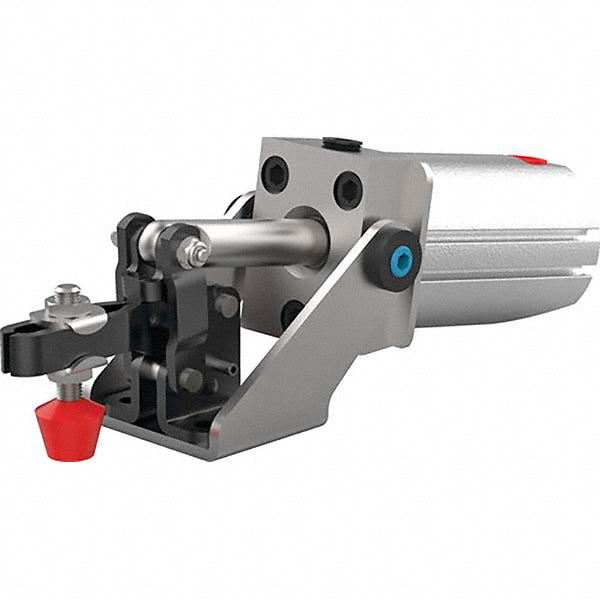

Toggle Clamp - De-Sta-Co 802-UE
MFR# 802-UE
$210.39
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The De-Sta-Co 802-UE is a toggle clamp.
Specifications
Bar end typeClosed
Bar extension1.7300
Bar opening degrees102
Bar styleSolid
Cylinder bore size1.2600
F 51
Height under bar1.0600
Holding capacity inner lb200.00
Holding capacity inner n890.00
IncludesSpindle Assembly
Length distance between mount holes0.5000
Maximum air pressure bar10.00
Maximum air pressure psig145.00
Maximum mechanical advantage2.6:1
Maximum operating temperature c90
Maximum operating temperature f194
Minimum operating temperature c-10
Minimum operating temperature f14
Mounting hole size0.2200
Mounting orientationHorizontal
Outer clamping force lb235.00
Outer clamping force n1045.00
Overall closed height2.5500
Overall closed length7.6900
Overall open height3.7700
Port sizeG1/8
Power typePneumatic
Sensor compatibilityRound; T-Slot
Width distance between mount holes1.0600
