De-Sta-Co

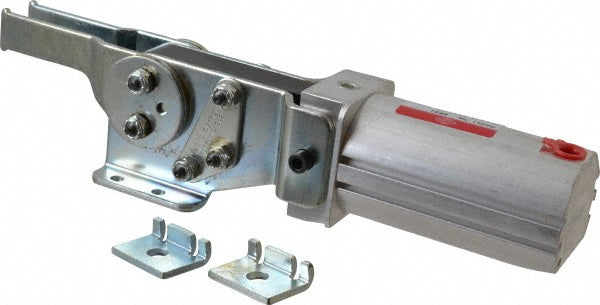

Toggle Clamp - De-Sta-Co 8021
MFR# 8021
$554.14
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The De-Sta-Co 8021 is a toggle clamp.
Specifications
Bar end typeOpen
Bar extension0.4400
Bar opening degrees90
Bar styleSolid
Cylinder bore size1.2600
F 2 21
G in1.9500
Height under bar1.5600
Holding capacity inner lb390.00
Holding capacity inner n1735.00
H field2.2500
IncludesFlanged Base
K in0.7500
Length distance between mount holes0.7900
Maximum air pressure bar10.00
Maximum mechanical advantage1.3:1
Maximum operating temperature f194
Minimum operating temperature f14
Mounting hole size0.2100
Mounting orientationHorizontal
Outer clamping force n449.00
Outer load capacity n1135.00
Overall closed height2.4000
Overall closed length in9-5/16
Overall open height4.4400
Overall open length7.6100
Port size1/8 NPT
Power typePneumatic
Sensor compatibilityRound; T-Slot
Width distance between mount holes1.5000
