De-Sta-Co

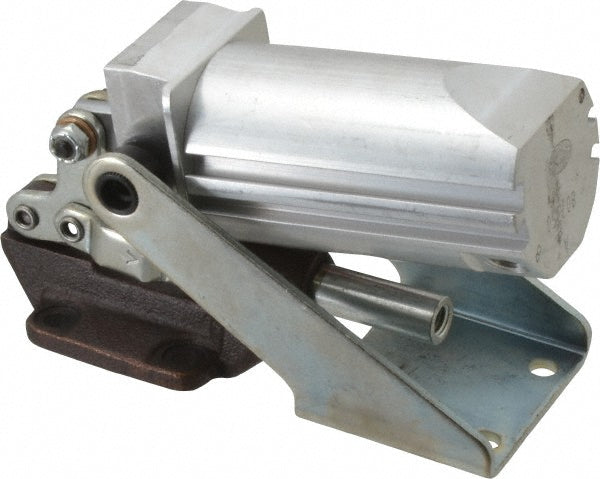

Toggle Clamp - De-Sta-Co 803
MFR# 803
$248.47List $270.75
Save 8%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The De-Sta-Co 803 is a toggle clamp.
Specifications
Clamping force 5 bar n3015.00
Clamping force at 5 bar3015
Length distance between mount holes1.4400
Load capacity lb2668.93N; 600lb; 600.00
Load capacity n2668.93N; 600lb; 2668.93
Maximum air pressure4.41bar
Maximum air pressure bar4.41
Maximum air pressure psig64.00
Maximum operating temperature c90.00
Maximum operating temperature f194.00
Minimum operating temperature c-10.00
Minimum operating temperature f-10C; 14F; 14.00
Overall closed height2.93
Overall closed length9.86
Plunger centerline height1.0900
Plunger diameter in5/16
Plunger thread size5/16-18 in
Plunger travel0.7500
Port size1/8 NPT
Power typePneumatic
Sensor compatibilityRound; T-Slot
Width distance between mount holes in1-5/16
