De-Sta-Co

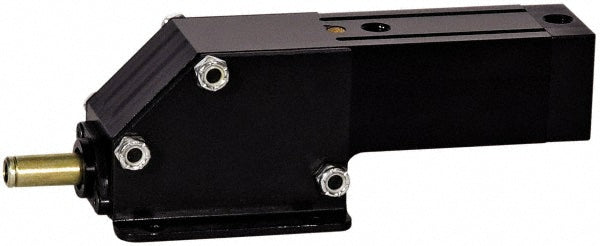

Toggle Clamp - De-Sta-Co 8031
MFR# 8031
$1,026.55
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The De-Sta-Co 8031 is a toggle clamp.
Specifications
Clamping force 5 bar n3285.00
Clamping force at 5 bar3285
Length distance between mount holes2.17
Load capacity lb890N; 2000lb; 2000.00
Load capacity n890N; 2000lb; 890.00
Maximum air pressure10bar
Maximum air pressure bar10.00
Maximum air pressure psig145.00
Maximum operating temperature c90.00
Maximum operating temperature f194.00
Minimum operating temperature c-10.00
Minimum operating temperature f-10C; 14F; 14.00
Mounting hole diameter (mm)0.27; 6.86
Overall closed height2.37
Overall closed length7.80
Plunger centerline height0.5900
Plunger diameter8mm
Plunger thread sizeM8
Plunger travel0.7500
Port size1/8 NPT
Power typePneumatic
Sensor compatibilityRound
Width distance between mount holes2.3600
