De-Sta-Co

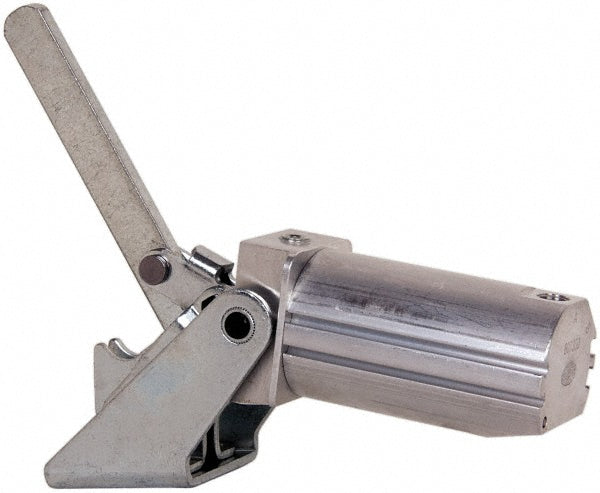

Toggle Clamp - De-Sta-Co 807-S
MFR# 807-S
$175.10List $194.19
Save 9%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The De-Sta-Co 807-S is a toggle clamp.
Specifications
Bar end typeOpen
Bar extension2.5100
Bar opening degrees103
Bar styleSolid
Cylinder bore size1.2600
F 4 61
Height under bar1.3800
Holding capacity inner lb500.00
Holding capacity inner n2224.00
IncludesBolt Retainer
Length distance between mount holes0.7500
Maximum air pressure bar10.00
Maximum air pressure psig145.00
Maximum mechanical advantage3.3:1
Maximum operating temperature c90
Maximum operating temperature f194
Minimum operating temperature c-10
Minimum operating temperature f14
Mounting hole size0.2800
Mounting orientationHorizontal
Outer clamping force lb180.00
Outer clamping force n804.00
Outer load capacity lb260.00
Outer load capacity n1160.00
Overall closed height3.0000
Overall closed length9.3300
Overall open height5.8300
Overall open length6.8200
Port size1/8 NPT
Power typePneumatic
Sensor compatibilityRound; T-Slot
Width distance between mount holes1.2500
