De-Sta-Co

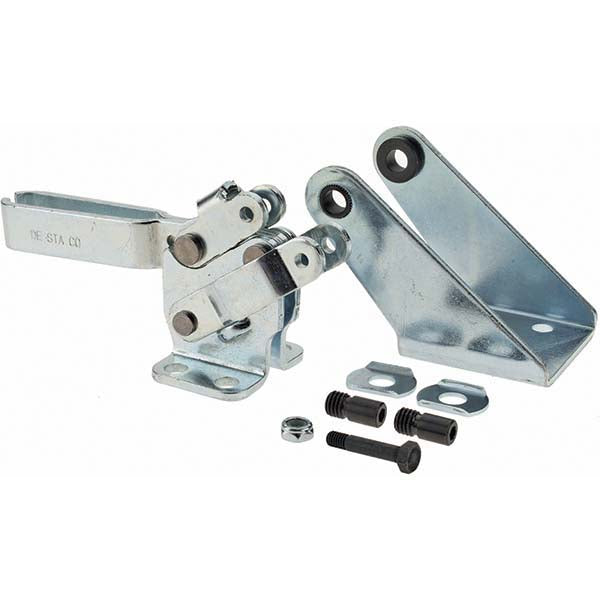

Toggle Clamp - De-Sta-Co 807-U-LC
MFR# 807-U-LC
$73.42
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The De-Sta-Co 807-U-LC is a toggle clamp.
Specifications
Bar end typeClosed
Bar extension2.5100
Bar opening degrees103
Bar styleSolid
F 4 61
Height under bar1.3800
Holding capacity inner lb375.00
Holding capacity inner n1670.00
IncludesFlanged Washer
Length distance between mount holes in3/4
Maximum mechanical advantage3.3:1
Maximum operating temperature f194
Minimum operating temperature f14
Mounting hole size0.2800
Mounting orientationHorizontal
Outer clamping force n1327.00
Overall closed height3.0000
Overall closed length6.8200
Overall open height5.8300
Overall open length9.3300
Port size1/8 NPT
Power typePneumatic
Sensor compatibilityRound; T-Slot
Spindle thread sizeM8
Width distance between mount holes1.2500
