De-Sta-Co

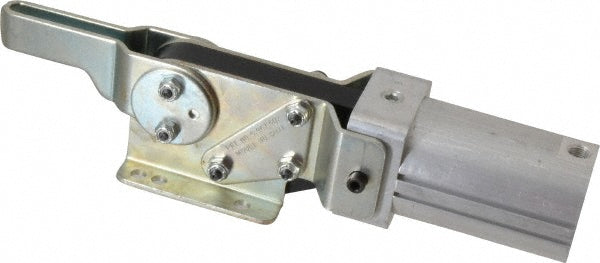

Toggle Clamp - De-Sta-Co 8071
MFR# 8071
$554.47
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The De-Sta-Co 8071 is a toggle clamp.
Specifications
Bar end typeOpen
Bar extension1.4000
Bar opening degrees90
Bar styleSolid
Cylinder bore size1.5700
F 2 41
G in2.1200
Height under bar1.6500
Holding capacity inner lb450.00
Holding capacity inner n2000.00
H field2.7200
IncludesBolt Retainer
J in0.2800
K in0.9100
Length distance between mount holes1.9700
Maximum air pressure bar10.00
Maximum mechanical advantage2.4:1
Maximum operating temperature f194
Minimum operating temperature f14
Mounting hole size0.2800
Mounting orientationHorizontal
Outer clamping force n1267.00
Outer load capacity n1380.00
Overall closed height2.6300
Overall closed length10.7400
Overall open height5.1200
Overall open length8.0200
Port size1/8 NPT
Power typePneumatic
Sensor compatibilityRound; T-Slot
Width distance between mount holes1.5600
