De-Sta-Co

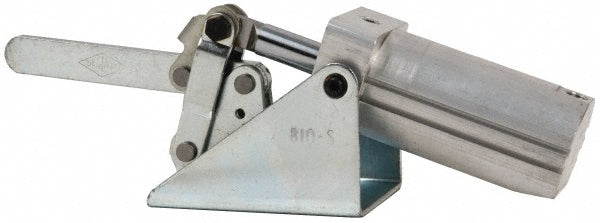

Toggle Clamp - De-Sta-Co 810-S
MFR# 810-S
$314.33List $348.58
Save 9%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The De-Sta-Co 810-S is a toggle clamp.
Specifications
Bar end typeOpen
Bar extension3.5700
Bar opening degrees99
Bar styleSolid
Cylinder bore size1.5700
F 51
Height under bar1.7900
Holding capacity inner lb750.00
Holding capacity inner n3400.00
IncludesBolt Retainer
Length distance between mount holes1.2500
Maximum air pressure bar10.00
Maximum air pressure psig145.00
Maximum mechanical advantage2.9:1
Mounting hole size0.3400
Mounting orientationHorizontal
Outer clamping force lb500.00
Outer clamping force n2220.00
Outer load capacity lb407.00
Outer load capacity n1823.00
Overall closed height3.7900
Overall closed length11.7000
Overall open height7.8700
Overall open length8.1300
Port size1/8 NPT
Power typePneumatic
Sensor compatibilityRound; T-Slot
Width distance between mount holes1.7800
