De-Sta-Co

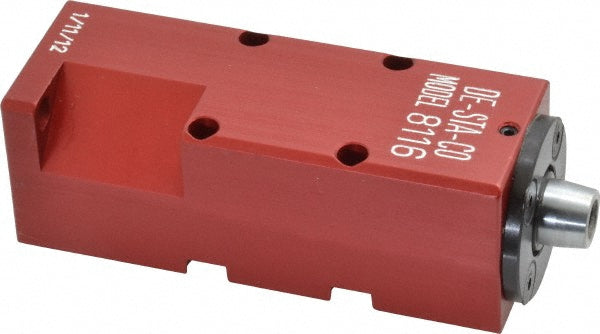

Swing Clamp - De-Sta-Co 8116
MFR# 8116
$387.26List $404.26
Save 4%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The De-Sta-Co 8116 is a swing clamp.
Specifications
Action typeSingle
Base radius in#10
Bin3.50
Body diameter0.7500
Body length3.3700
Body width diameter0.7500
Clamping force lb24.73
Clamping force n110.00
Clamp arm compatibility801528 Standard Clamping Arm; 801529 Standard Clamping Arm; 801530 T-Style Clamping Arm; 801531 T-Style Clamping Arm; 801532 Blank Clamping Arm
C in1.2500
D in1.2500
E in0.6200
FeaturesBlock Style Body; Lightweight & Robust
F in0.4700
G in0.4700
H field1.0000
IncludesClamping Arm; Spindle
J in1.1200
K in1.0000
Maximum operating pressure bar8.96
Maximum operating pressure psi130
Maximum operating pressure psig130
Minimum operating pressure bar2.07
Minimum operating pressure psig30
Mount typeSurface
M in1.0000
N in1.5000
Operating volume cc4.10 (Clamp)
Operation typeAir
Overall length in1/4
Overall open length4.7500
Port size10-32
P in0.4700
Q in0.20
Rod diameter0.4400
Stem diameter1.4400
Swing directionLeft Hand
Tapped depth0.3100
Total stroke distance0.8500
Vertical stroke distance0.3819
