De-Sta-Co

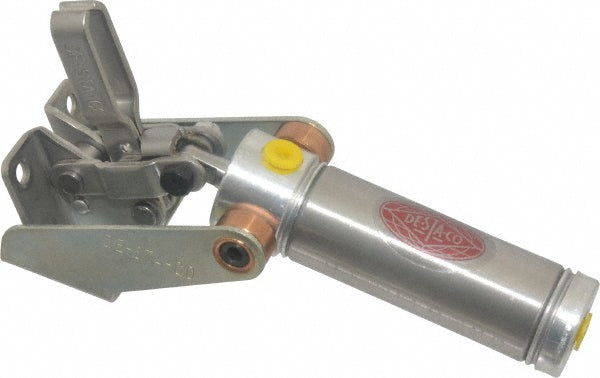

Toggle Clamp - De-Sta-Co 812-U
MFR# 812-U
$146.87List $156.03
Save 5%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The De-Sta-Co 812-U is a toggle clamp.
Specifications
Bar end typeOpen
Bar extension1.0200
Bar opening degrees99
Bar styleSolid
Cylinder bore size0.7500
D in0.6300
F 3 41
Height under bar0.6800
Holding capacity inner lb100.00
Holding capacity inner n440.00
H field1.0600
IncludesFlat-Tip Bonded Neoprene Spindle
J in0.1700
K in0.6900
Length distance between mount holes0.6300
Maximum air pressure bar17.24
Maximum air pressure psig250.00
Maximum mechanical advantage2.9:1
Maximum operating temperature c73
Maximum operating temperature f165
Minimum operating temperature c-23
Minimum operating temperature f-10
Mounting hole size0.1700
Mounting orientationHorizontal
Outer clamping force lb92.00
Outer clamping force n413.00
Outer load capacity lb55.00
Outer load capacity n245.00
Overall closed height1.5600
Overall closed length5.5900
Overall open height2.7600
Overall open length4.5700
Port sizeM5
Power typePneumatic
Width distance between mount holes0.9400
