De-Sta-Co

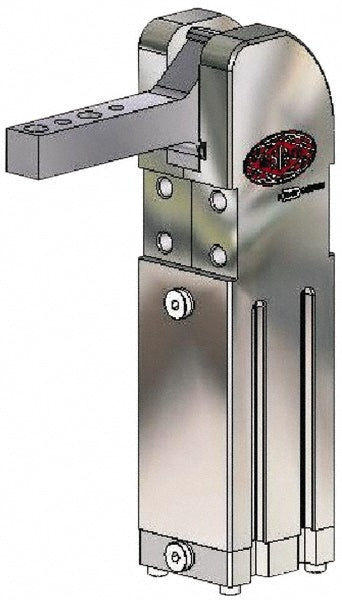

Toggle Clamp - De-Sta-Co 81L12-10100
MFR# 81L12-10100
$579.43
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The De-Sta-Co 81L12-10100 is a toggle clamp.
Specifications
Air requirement psi20 to 130
Bar end typeClosed
Bar opening degrees90
Bar styleSolid
Cylinder bore size1.1000
D (mm)3.00
E (mm)3.30
F (mm)24.00
G (mm)9.00
Height under bar4.0900
Holding capacity inner lb221.00
H (mm)27.00
Length distance between mount holes0.5900
Maximum additional weight at clamp arm mounted in position x0.11
Maximum clamping torque at 72 psig lb39.00
Mounting hole size (mm)M4x6
Mounting orientationVertical
M (mm)28.00
Overall closed height0.9400
Overall open height5.0200
Port sizeM5
Power typePneumatic
Sensor compatibilityRound; T-Slot
Width distance between mount holes0.3500
