De-Sta-Co

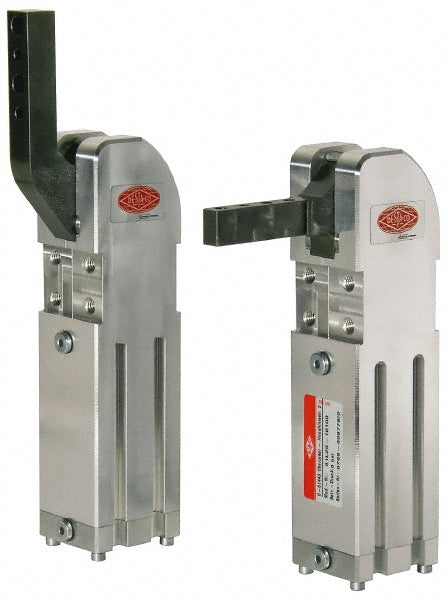

Toggle Clamp - De-Sta-Co 81L25-14100
MFR# 81L25-14100
$732.58
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The De-Sta-Co 81L25-14100 is a toggle clamp.
Specifications
Bar end typeClosed
Bar opening degrees90
Bar styleSolid
Cylinder bore size1.5700
D (mm)4.00
E (mm)6.50
F (mm)35.00
G (mm)20.00
Height under bar5.9400
Holding capacity inner lb708.00
H (mm)40.50
Length distance between mount holes0.7900
Maximum additional weight at clamp arm mounted in position x0.22
Maximum clamping torque at 72 psig lb150.00
Mounting hole size (mm)M6x8
Mounting orientationVertical
M (mm)40.00
Overall closed height1.3800
Overall open height7.6900
Port sizeM5
Power typePneumatic
Sensor compatibilityRound; T-Slot
Width distance between mount holes0.5900
