De-Sta-Co

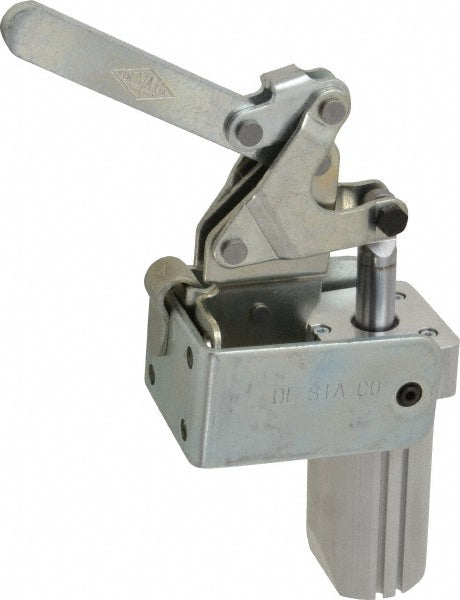

Toggle Clamp - De-Sta-Co 827-S
MFR# 827-S
$370.57List $410.95
Save 9%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The De-Sta-Co 827-S is a toggle clamp.
Specifications
Bar end typeClosed
Bar extension3.1800
Bar opening degrees88
Bar styleSolid
Bin8.64
Cylinder bore size1.5700
D in1.2500
F 5 31
F in1.2500
G in2.9400
Height under bar3.9100
Holding capacity inner lb700.00
Holding capacity inner n3110.00
H field3.1900
IncludesBolt Retainer
J in0.3300
Manufacturer s part number827-S
Maximum air pressure bar10.00
Maximum mechanical advantage02:01
Maximum operating temperature f194
Minimum operating temperature f14
Mounting hole size0.3300
Mounting orientationVertical
Outer clamping force n2200.00
Outer load capacity n1257.00
Overall closed height1.7600
Overall closed length8.4900
Overall open height9.0400
Overall open length5.3100
Port size1/8 NPT
Power typePneumatic
Sensor compatibilityRound; T-Slot
Width distance between mount holes1.2500
