De-Sta-Co

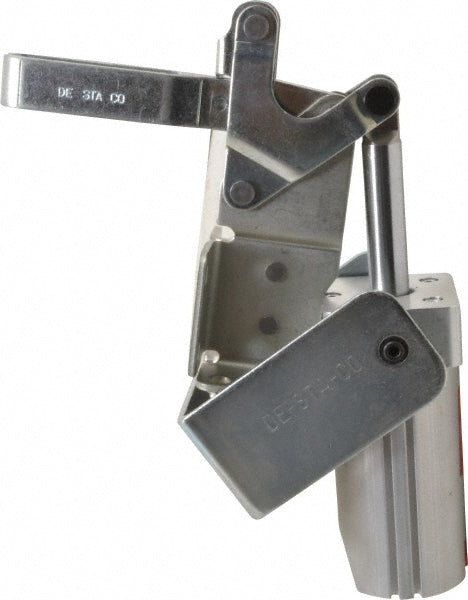

Toggle Clamp - De-Sta-Co 827-U
MFR# 827-U
$367.19List $384.10
Save 4%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The De-Sta-Co 827-U is a toggle clamp.
Specifications
Bar end typeOpen
Bar extension3.2700
Bar opening degrees88
Bar styleU-Bar
Bin8.75
Cylinder bore size1.5700
D in1.2500
F 5 31
F in1.2500
G in2.9400
Height under bar3.8900
Holding capacity inner lb600.00
Holding capacity inner n2670.00
H field3.3000
IncludesFlanged Washer
J in0.3300
K in2.5600
Manufacturer s part number827-U
Maximum air pressure bar10.00
Maximum air pressure psig145.00
Maximum mechanical advantage2.2:1
Maximum operating temperature c90
Maximum operating temperature f194
Minimum operating temperature c-10
Minimum operating temperature f14
Mounting hole size0.3300
Mounting orientationVertical
Outer clamping force lb491.00
Outer clamping force n2200.00
Outer load capacity lb309.00
Outer load capacity n1383.00
Overall closed height1.7600
Overall closed length8.6100
Overall open height9.0400
Overall open length5.3400
Port size1/8 NPT
Power typePneumatic
Sensor compatibilityRound; T-Slot
Width distance between mount holes1.2500
