De-Sta-Co

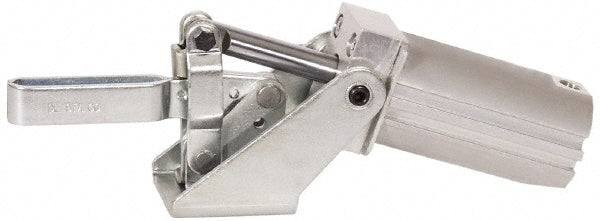

Toggle Clamp - De-Sta-Co 846
MFR# 846
$541.64List $600.67
Save 9%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The De-Sta-Co 846 is a toggle clamp.
Specifications
Bar end typeOpen
Bar extension2.1900
Bar opening degrees97
Bar styleU-Bar
Height under bar1.6100
Holding capacity inner lb750.00
Holding capacity inner n3340.00
IncludesSpindle
Industry number846
Length distance between mount holes1.0000
Maximum air pressure bar4.76
Maximum air pressure psig69.00
Maximum mechanical advantage5.6:3.5
Maximum operating temperature c90
Maximum operating temperature f194
Minimum operating temperature c-10
Minimum operating temperature f14
Mounting hole size0.3000
Mounting orientationHorizontal
Outer clamping force lb405.00
Outer clamping force n1800.00
Outer load capacity lb405.00
Outer load capacity n1800.00
Overall closed height3.3000
Overall closed length10.3300
Overall length10.8000
Overall open height5.5400
Port size1/8 NPT
Power typePneumatic
Width distance between mount holes1.5000
