De-Sta-Co

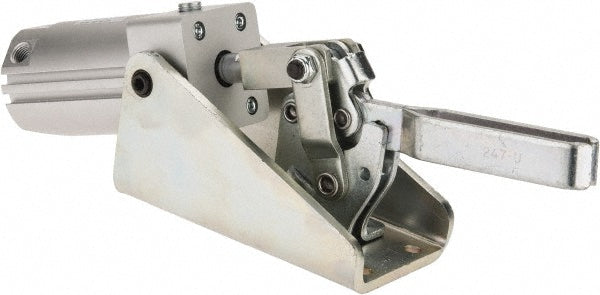

Toggle Clamp - De-Sta-Co 847-U
MFR# 847-U
$545.33List $604.75
Save 9%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The De-Sta-Co 847-U is a toggle clamp.
Specifications
Bar end typeOpen
Bar extension4.8700
Bar opening degrees94
Bar styleSolid
Cylinder bore size2.0500
F 0 41
Height under bar2.2500
Holding capacity inner lb1000.00
IncludesFlanged Washer
K in3.0600
Length distance between mount holes1.2500
Maximum air pressure bar10.00
Maximum air pressure psig145.00
Maximum mechanical advantage1.9:1
Maximum operating temperature c90
Maximum operating temperature f194
Minimum operating temperature c-10
Minimum operating temperature f14
Mounting hole size0.3400
Mounting orientationHorizontal
Outer clamping force lb450.00
Outer clamping force n2018.00
Outer load capacity lb400.00
Outer load capacity n2135.00
Overall closed height4.4000
Overall closed length15.2500
Overall open height9.2700
Overall open length10.3800
Port size1/4 NPT
Power typePneumatic
Sensor compatibilityRound; T-Slot
Width distance between mount holes1.7800
