De-Sta-Co

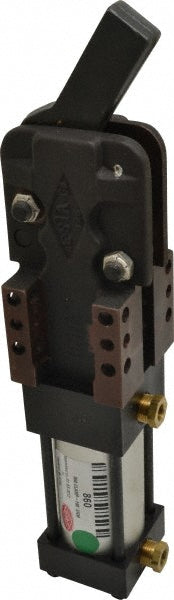

Toggle Clamp - De-Sta-Co 860
MFR# 860
$1,317.44
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The De-Sta-Co 860 is a toggle clamp.
Specifications
Air requirement psi125
Bar opening degrees180
Bin1.75
Cylinder bore size2.0000
C projection gage line to nose end11.63
D in0.6300
F in1.1300
G in0.3400
Holding capacity inner lb3000.00
H field1.1300
IncludesMagnetic Ring
K in4.5000
Length distance between mount holes1.2500
Manufacturer s part number860
Maximum mechanical advantage5:1
Mounting hole size0.3400
Mounting orientationVertical
M in2.9400
No description96.0000
N in2.3100
Overall closed height in2-15/16
Overall closed length in14-19/32
Port size3/8 NPT
Power typePneumatic
Width distance between mount holes2.1900
