De-Sta-Co

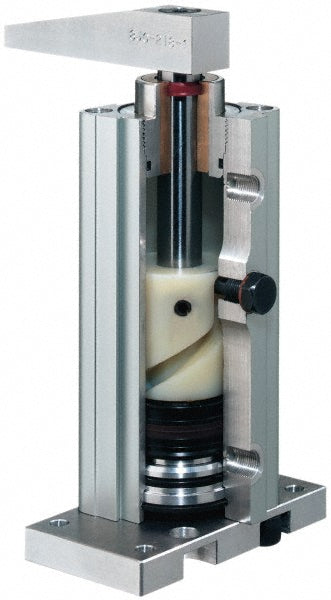

Swing Clamp - De-Sta-Co 89R50-025-2
MFR# 89R50-025-2
$580.92List $617.16
Save 5%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The De-Sta-Co 89R50-025-2 is a swing clamp.
Specifications
Action typeSingle
Arm length0.4300
Base length (mm)78.50
Base width (mm)65.00
Body diameter1.9700
Body length7.7000
Body width diameter1.9700
Clamping force lb167.00
Clamping force n742.85
Clamp arm compatibility8JG-219-1 Standard Clamping Arm; 8MA-088-1 Blank Clamping Arm
Distance between mounting holes lengthwise50.00
Height (mm)194.50
Maximum operating pressure bar10.00
Maximum operating pressure psi145
Maximum operating pressure psig145
Minimum operating pressure bar2.07
Minimum operating pressure psig30
Mounting hole thread sizeM10
Mount typeFlange
Operating volume cc102.10 (Unclamp); 88.90 (Clamp)
Operation typeAir
Port sizeG1/8
Rod diameter0.7100
Rod thread sizeM10
Swing directionAdjustable (Right, Left, Straight)
Total stroke distance2.0500
Travel length27.00
Vertical stroke distance0.9800
Width distance between mount holes50.00mm
