De-Sta-Co

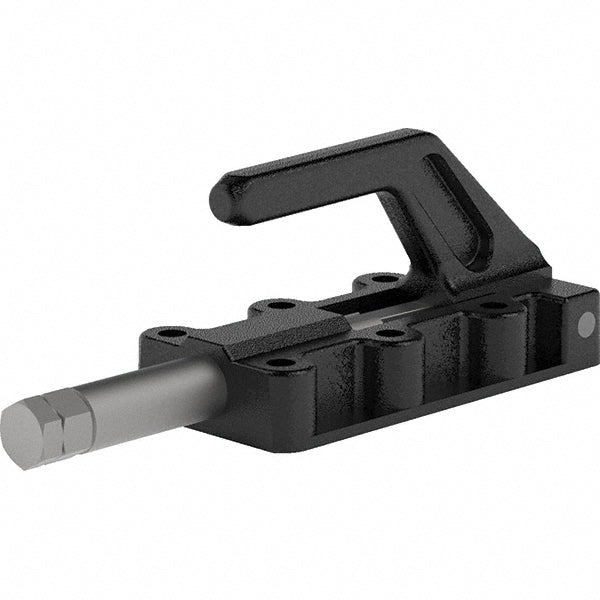

Toggle Clamp - De-Sta-Co 95050
MFR# 95050
$280.41
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The De-Sta-Co 95050 is a carbon steel toggle clamp.
Specifications
Base length5.5400
Base styleFlanged
Base width in2.6000
Clamp materialCarbon Steel
Front of base to tip of toggle bar1.9700
Handle colorBlack
Handle styleStraight
Industry number95050
Length distance between mount holes in1.7700
Load capacity7339.57N; 1650lb
Load capacity n7339.57
MaterialCarbon Steel
Mounting hole diameter (mm)8.38
Number of mounting holes6
Overall height3.0700
Overall length7.4700
Plunger centerline height0.5500
Plunger diameter in3/4
Plunger shapeRound
Plunger thread sizeM12x1.75
Plunger thread styleInternal
Plunger travel1.9700
Width distance between mount holes1.7700
