De-Sta-Co

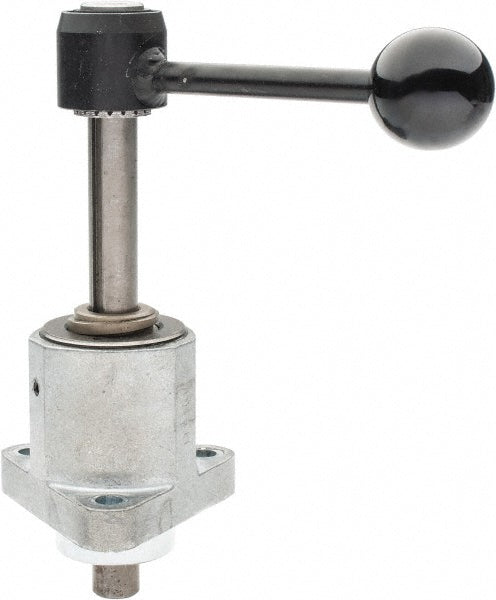

Toggle Clamp - De-Sta-Co FL-161/60
MFR# FL-161/60
$539.09
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The De-Sta-Co FL-161/60 is a toggle clamp.
Specifications
Actuation typeHand Lever
Load capacity lb9000N; 2020lb; 2020.00
Load capacity n9000N; 2020lb; 9000.00
Maximum clamping stroke (mm)4.00
Maximum rapid stroke60
Maximum rapid stroke (mm)60.00
Mounting styleFlange Mount
Mount hole diameter (mm)9.00
Operating methodOne-Hand
Overall height (mm)73mm; 73.00
Overall length (mm)196mm
Plunger diameter16mm
Plunger diameter (mm)16.00
Plunger thread sizeM8
Width distance between mounting holes68
