Dijet

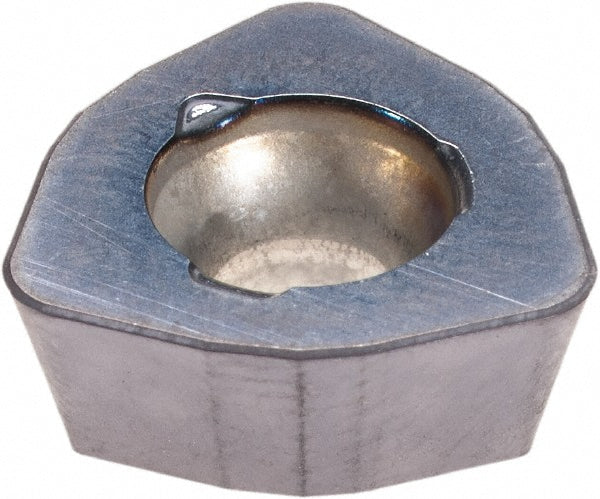

WDMW080520ZTR J Solid Carbide Insert, Grade JC5040, TiAlN - Dijet WDMW080520ZTR J
MFR# WDMW080520ZTR JSeries WDMW
$13.32List $13.89
Save 4%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeTrigon
GradeJC5040
MaterialSolid Carbide
CoatingTiAlN
Description
The Dijet WDMW080520ZTR J is a WDMW080520ZTR J solid carbide indexable insert, grade JC5040, TiAlN coated. Suited for universal.
Specifications
Ansi codeWDMW080520ZTR J
Chip breakerTR
Coating finishTiAlN
Coating processPVD
Corner radius0.0790
Included angle degree80
Inscribed circle0.5110
Inscribed circle range0.5100 to 0.6000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeTrigon
Insert size08
Insert size code080520ZTR
Insert styleWDMW
Iso codeWDMW080520ZTR J
Manufacturers catalog numberWDMW080520ZTR J
Manufacturer gradeJC5040
Material applicationUniversal
Number of cutting edges3
Primary workpiece materialUniversal
Relief angle15
Thickness0.2160
Thickness range0.2000 to 0.2200
