Dorian Tool

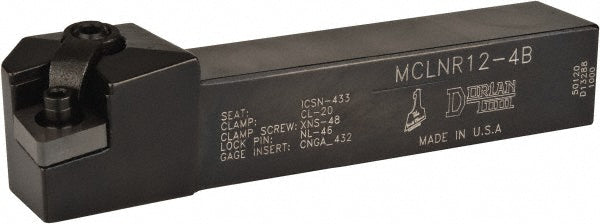

Indexable Turning & Profiling - Dorian Tool 73310150120
MFR# 73310150120Series Multi-Option
$75.30List $96.58
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Dorian Tool 73310150120 indexable turning & profiling. Series Multi-Option.
Specifications
Back of bar to cutting edge in1
Compatible insert size codeCNM_432
Complete insert compatibilityCNM.. 432
Coolant throughNo
Cutting directionRight Hand
Cutting tool applicationTurning
Hand of holderRight Hand
Head length1.2500
Insert compatibilityCN..43.
Insert holding methodClamp; Pin
Insert inscribed circle in1/2
Multi use toolNo
Overall length in4-1/2
RakeNegative
Rake angle-7
Shank height in3/4
Shank width in3/4
Toolholder materialSteel
Toolholder styleMCLN
