Dorian Tool
Indexable Threading Toolholders - Dorian Tool 73310158078
MFR# 73310158078Series On Edge Jet-Stream
$84.14List $107.92
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description

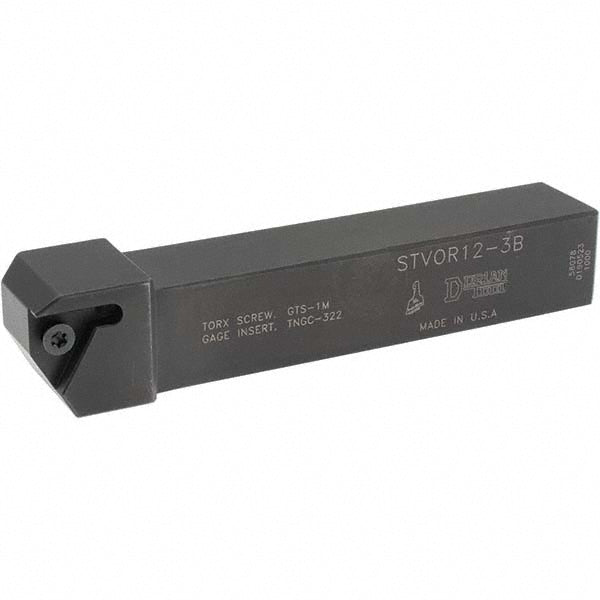

The Dorian Tool 73310158078 indexable threading toolholders. Series On Edge Jet-Stream.
Specifications
Back of bar to cutting edge0.8750
Compatible insert size code332
Coolant entry style code0 - Without Coolant
Coolant throughNo
Cutting tool applicationThreading
Hand of holderRight Hand
Head length1.0000
Insert compatibilityTNMC to 322
Insert holding methodScrew
Insert inscribed circle in3/8
Maximum depth of cut0.1500
Multi use toolYes
Overall length in4-1/2
Shank height in3/4
Shank length in4-1/2
Shank width diameter in3/4
Thread typeExternal
Toolholder styleSTVO
