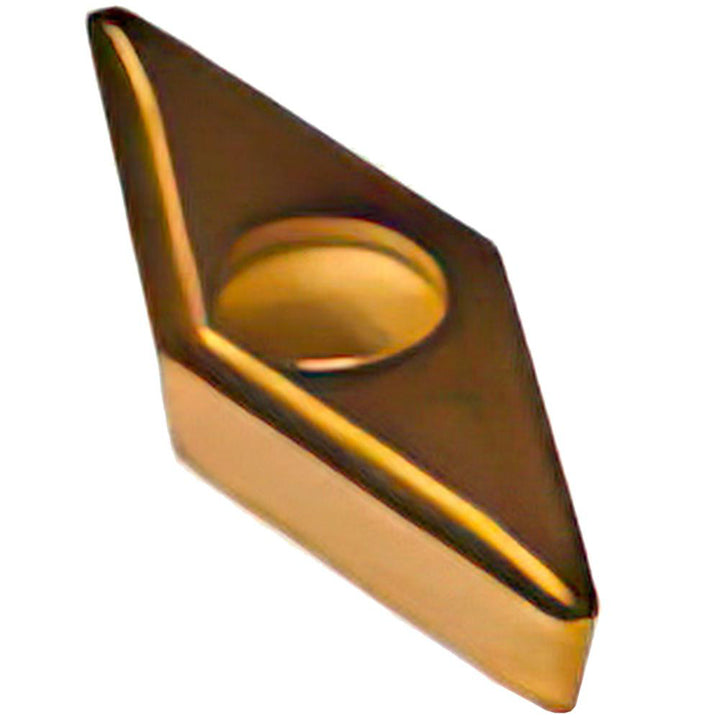

VNMG-160404-PEF-DPC25UT Carbide Insert, Grade DPC25UT, Al2O3 - Dorian Tool 73310169273
MFR# 73310169273ISO/ANSI# VNMG160404Cat# VNMG-331-PEF-DPC25UTSeries VNMG-PEF
$15.03List $19.28
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeV - Diamond (Rhombic) 35-Deg
GradeDPC25UT
MaterialCarbide
CoatingAl2O3
Description
The Dorian Tool 73310169273 is a VNMG-160404-PEF-DPC25UT carbide indexable insert, grade DPC25UT, Al2O3 coated. Suited for steel.
Specifications
Ansi insert codeVNMG331
Ansi size code331
Chip breakerPEF
Clearance codeN
Coating finishAl2O3
Coating processCVD
Corner radius in1/64
Cutting edge styleHoned
Grade characteristicsSteel (P) - High Wear-Resistance to High Toughness; Stainless Steel (M) - High Wear-Resistance to High Toughness
Hole diameter0.1500
Included angle35
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.6496
Insert materialCarbide
Insert shapeV - Diamond (Rhombic) 35-Deg
Insert size code331
Insert styleVNMG
Insert thickness in3/16
Iso codeVNMG-160404-PEF-DPC25UT
Iso insert codeVNMG160404
Iso size code160404
Manufacturers catalog numberVNMG-331-PEF-DPC25UT
Manufacturer gradeDPC25UT
Material gradeC5; C6
Maximum depth of cut0.1180
Multi use toolNo
Primary workpiece materialSteel
RakeNegative
Relief angle0
Side clearanceNegative
StandardsANSI; ISO
Tolerance codeM
